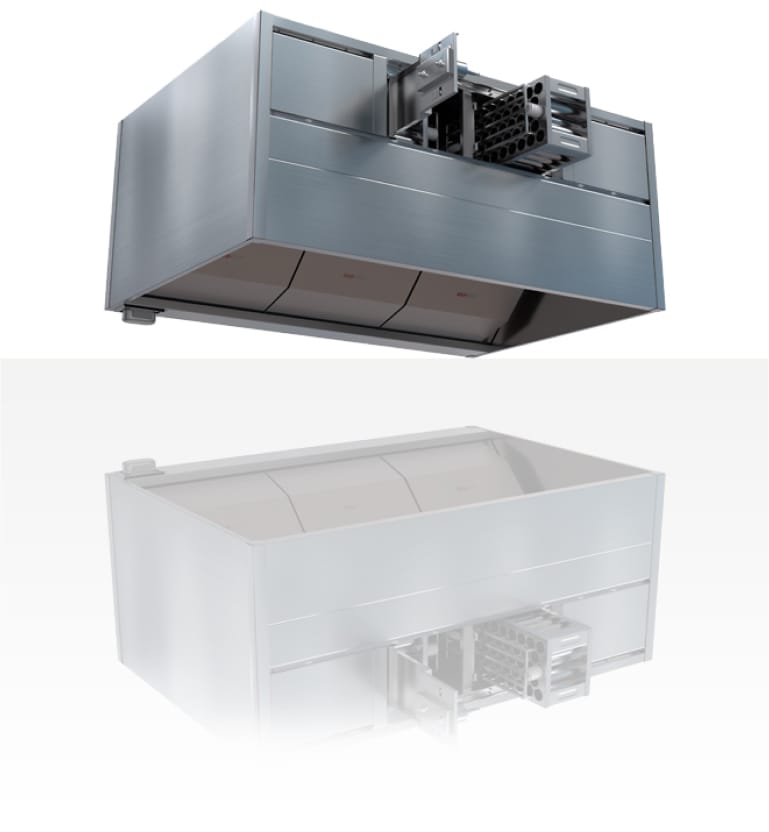

Combined hood with electrostatic technology
New
Stadium esp series
No more smoke
Since 1986, Cadexair has been widely renowned for its innovative ventilation system solutions for professional and commercial kitchens. It has leveraged its expertise to achieve a true design breakthrough: integrating an advanced filtration system, better known as electrostatic precipitator, with a compact foot print. This system captures up to 99% of airborne grease and minimizes smoke emissions, ensuring a cleaner, safer environment while optimizing space and performance.
Benefits of the Stadium ESP series
- Includes advanced filtration unit in just 35 inches of height
- Reduces fire risks with factory-installed automatic fire damper and fire suppression system
- Provides easy access for inspection and maintenance via front access panels
- Lowers installation and maintenance costs
Video coming soon
Configurations
The Stadium ESP hood offers flexible configuration options to adapt to available space, cooking equipment, airflow needs, and other site-specific constraints.

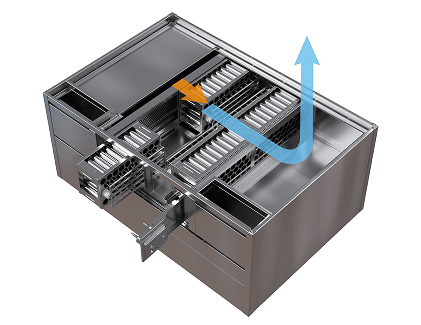

ST-20 ESP

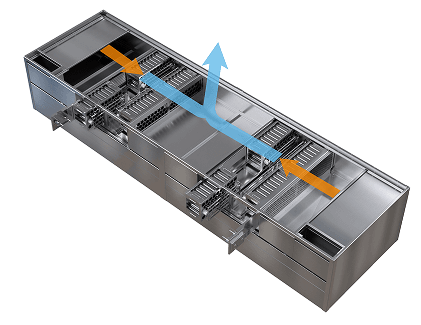

ST-40 ESP
Why choose Stadium ESP Series

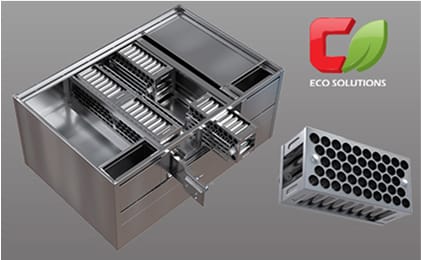

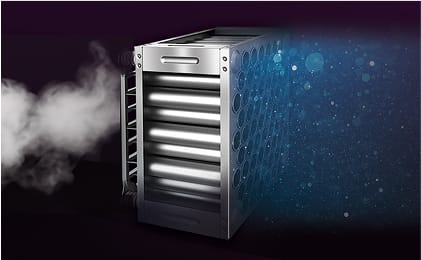

Compact Integrated Electrostatic Precipitator Technology
Captures up to 99% of particles.
Perfect for Solid Fuel Cooking
Built for strength, safety, and performance — the industry standard for wood and charcoal cooking.
Cost-Effective Maintenance
Designed with front access for quick, easy, cost-effective, and eco-friendly maintenance thanks to its washable filters.

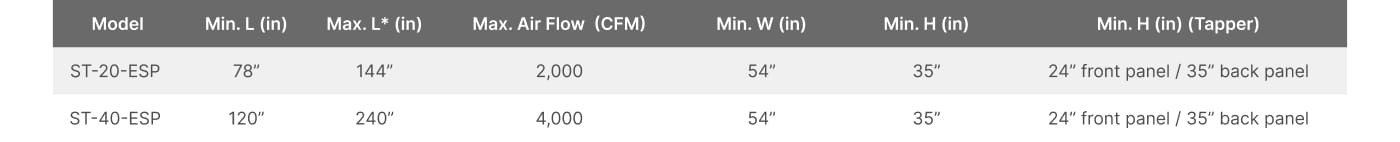

Available models
* Max. L corresponds to the approved minimum flow per linear foot or the maximum length of the hood.
Accessories / Equipments
All Stadium ESP hoods come with:
- Features a double-pass electrostatic precipitator.
UL-Listed touchscreen controller, ready to integrate with a smart hood system. (DCKV).
- The power supply has protection against short circuits, overvoltage, and overheating, with fault alerts sent to the control panel.
- Advenced fire protection for maximum safety.
- Entirely constructed from 18 MSG stainless steel with a No. 4 finish on visible surfaces.
- Energy-efficient warm white LED lighting for optimal kitchen visibility.
Available Options
Continuous Water Mist Available:
Boosts safety in kitchens utilizing solid fuel cooking by mitigating fire risks.
Auto-Wash System
Automates daily cleaning of ESP cells, reducing costs and simplifying maintenance.
