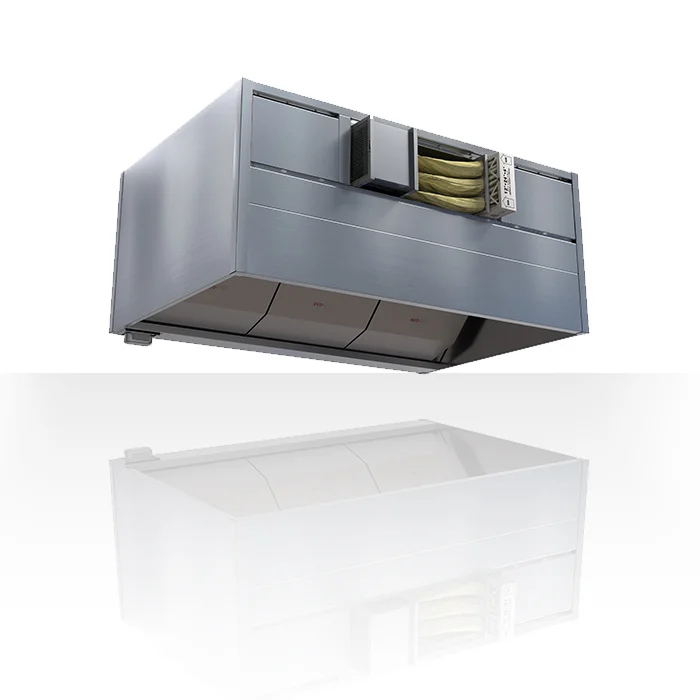

Stadium Series

Combined Hood

With its expertise, Cadexair has achieved a real tour de force by condensing a huge ecological standard advanced filtration unit, commonly called air purifier, in only 30 inches in height. The reduced size of the Stadium series allows significant savings on the cost of purchasing materials, as well as installation.

Another advantage of the Stadium series is that it considerably reduces the maintenance and servicing costs of the ducts, thanks to an ingenious accessibility on the front.

This hood has been specially designed for space optimization to minimize the nuisance for the neighborhood in high density urban centers.

Another huge advantage of the Stadium series model is the factory-installed fire extinguisher.

Also, the firebreak integrated into the hood also limits the risk of fire spreading outside the cooking zone.

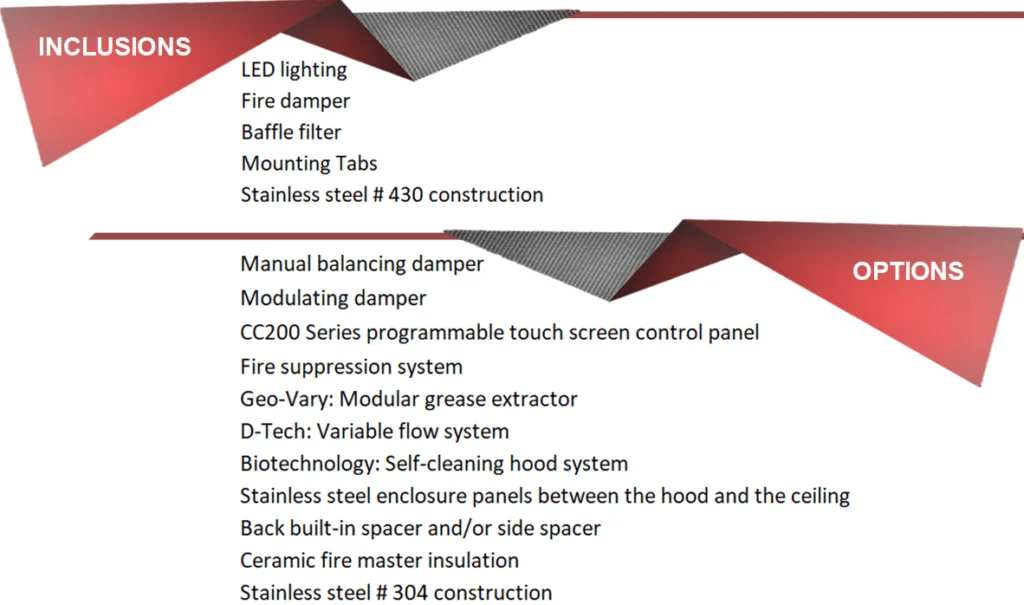

The Stadium series is equipped :

CSA panel control,
Filter supervision control card,
Geo-Vary modular degreaser filter,
D-Tech variable flow system (optional),
Modulating shutter,
LED lamps,

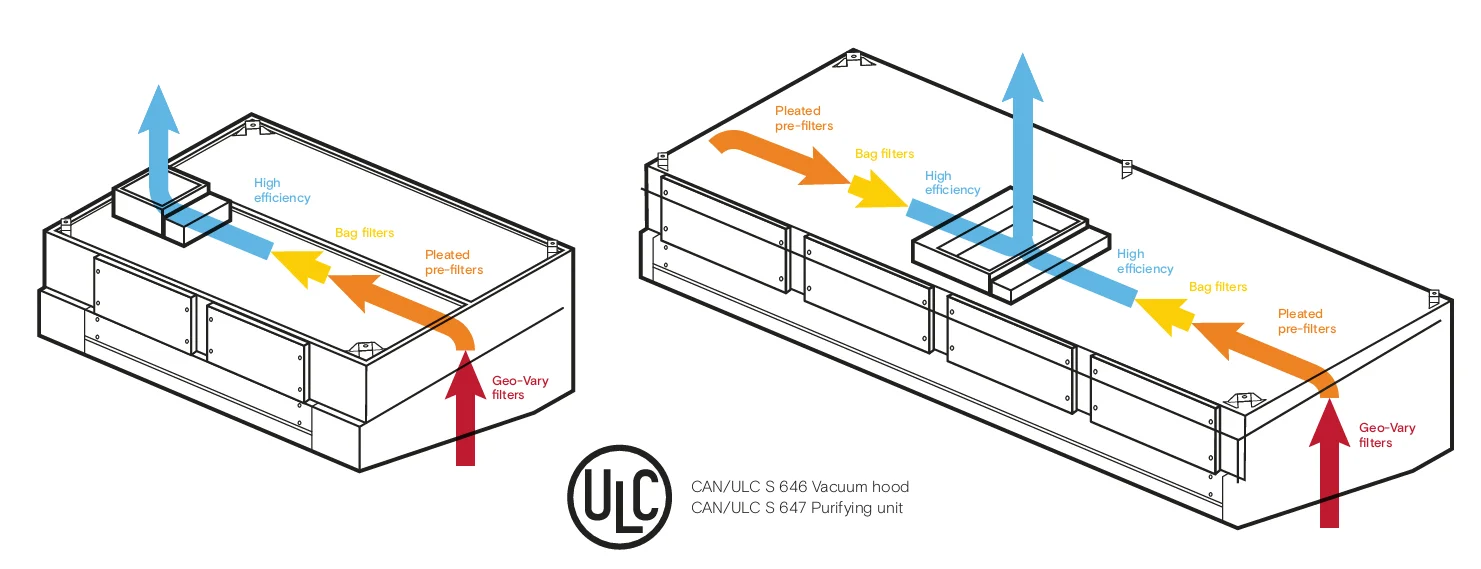

Advanced ecological filtration system,
And custom odor treatment solutions (optional).

Cadexair products meet the highest quality standards and engineering in accordance UCL 647 standards.

With the Stadium series, Cadexair innovates and keeps front in the field with a product at the cutting edge of technology.

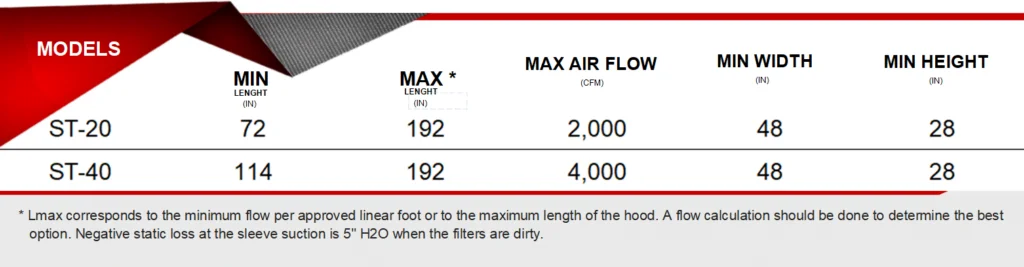

Stadium hood allows several possible configurations depending on the size of the hood, the exhaust flow rate, the position of the filtration plenum (front or top).

* Lmax corresponds to the minimum flow per approved linear foot or to the maximum length of the hood. A flow calculation should be done to determine the best option. Negative static loss at the sleeve suction is 5″ H2O when the filters are dirty.

CC-200 CSA CERTIFIED CONTROL PANEL

The control system with endless possibilities

Suitable for all your exhaust and make-up air needs
Remote access for reading or programming in BACNET communication
Intuitive interface
Can be wall mounted or recessed
Optional variable system commands and feedback to the building management system
Fire extinguisher monitoring
CSA certified

THE GEO-VARY MODULAR DEGREASER INCLUDED IN THE STADIUM HOOOD

The advantages of the Geo-Vary filter:

The undoubted advantage of the Geo-Vary filter is its possibility of adjustment which allows to keep a high level of degreasing by centrifugal force. The speed in the change of direction of a filer is the key to its effectiveness. Commercial hoods always have flow rates evaluated according to the type of equipment installed under the hood. The majority of filters encountered on the markets do not have the possibility of being adjusted. These filters become less and less efficient when the average linear flow rate of the hood decreases. The Geo-Vary filters, by their adjustment principle, allow to keep a speed and a high degreasing rate in hoods require a lower average linear flow by adjusting the surface of the filter at the low point and to its discharge.

FIRE PROTECTION PRE-MACHINING

The Stadium series hood is protected by an integrated Safety First SFA system or an Ansul R-102 system

The sprinkler nozzles, fuse holders and piping required to protect the primary and secondary boxes are factory installed. The cabinet including the extinguishing agent and the trigger cartridge must be installed on site by an approved installer of fire protection system. The SFA or R-102 sprinkler network and the accessories necessary to cover the cooking equipment under the hood are not included but can be added and combined with that already installed hood. Depending on the region, Cadexair can provide you with a turnkey service for the installation of compliant fire protection.

FAN SELECTION

The Stadium Series is a Static high-pressure hood

Contact one of our specialists in order to select the fan that best suits your realities and needs.

Accessories

Contact us for any suggested quote

We support our customers in the choice of their ventilation system for commercial kitchens. The monitoring of our projects and our available resources allow us to offer you a quality service in accordance with NFPA96.

Our expertise in the design of ventilation system projects and our experience in the field allow us to offer solutions adapted to the realities and needs or our customers.

Our automated quote system facilitates the following operations :

Calculation of flows
Workshop drawings
Electrical diagrams
Electromechanical coordination
Advanced support
